Types of Sliding Shower Enclosures

How to Plan and Choose a Sliding Shower Door for Your Bathroom

Choosing a sliding shower door involves more than finding a design that fits the bathroom's style. The enclosure needs to work with the available opening, shower tray or floor, wall construction and position of the shower fittings. Taking these details into account before purchase can help create a showering area that is practical to use, easier to maintain and visually consistent with the rest of the bathroom.

A sliding shower enclosure can be particularly useful where there is limited clearance for a conventional hinged door. Because the door travels along a track rather than swinging into the room, the layout can be planned without reserving the same amount of floor space for door movement. However, the opening dimensions, access requirements and installation arrangement still need to be assessed carefully.

1. Measure the Shower Opening Accurately

Accurate measurements are the starting point for choosing a suitable sliding shower door. An enclosure that appears close to the required size may not fit correctly if the walls are uneven, the opening is out of square or the finished dimensions differ from the original measurements.

Before selecting an enclosure, measure the available width at several points rather than relying on a single measurement. For a wall-to-wall installation, check the distance between the finished walls at the top, middle and bottom of the proposed enclosure. Differences between these measurements may indicate that the walls are not perfectly parallel.

Also establish the finished height available for the enclosure. Consider the position of ceiling features, wall finishes and any other elements that could affect installation.

Keep the following points in mind:

• Measure from the finished surfaces, including the intended wall tiles, rather than relying only on the underlying wall dimensions.

• Confirm whether the listed enclosure width is a fixed measurement or whether the product offers an adjustment range.

• Check the dimensions of the shower tray or the prepared showering area.

• Identify skirting, raised edges or other obstructions that could affect the installation.

• Review the manufacturer's measurement instructions before placing an order.

The dimensions listed on a product page should not be treated as proof that the enclosure will fit every opening of a similar size. Always compare the actual measurements with the installation specification for the selected model.

2. Check the Shower Tray and Wall Configuration

The enclosure and shower tray need to work together as one installation. Their dimensions, positioning and edge profiles can affect how the door operates and how effectively the completed showering area contains water.

For a tray-mounted enclosure, check that the enclosure is suitable for the tray's dimensions and intended position. The door panels and fixed sections must align with the installation surfaces specified by the manufacturer.

For a level-access shower, the enclosure needs to be suitable for the prepared floor and drainage arrangement. The position of the opening, floor falls and water outlet should be considered as part of the overall design.

Do not assume that every sliding enclosure can be installed on every tray or directly onto every tiled floor. Compatibility depends on the specific enclosure, the installation method and the surrounding construction.

Before finalising the purchase, establish:

• Whether the enclosure is intended for a shower tray, a level-access shower or a particular installation arrangement.

• Whether the dimensions of the tray or opening match the selected model.

• How the enclosure's bottom edge and door movement relate to the finished floor or tray.

• Whether the walls and mounting surfaces are suitable for the specified fixings.

• Whether the installation instructions identify any additional components that are required.

If the shower tray is being replaced as part of a renovation, select the tray and enclosure together wherever possible. This helps reduce the risk of choosing components that are individually suitable but incompatible as a complete installation.

3. Understand the Door Opening and Access Requirements

A sliding shower door is often selected because it does not need to swing into the bathroom. However, the usable entrance depends on the enclosure design, the number of panels and the way the sliding sections overlap.

The overall width of an enclosure is not necessarily the same as its clear entry width. When comparing options, check the manufacturer's stated access opening, where available, rather than judging accessibility from the product's overall dimensions.

Think about how people will enter and leave the shower. Consider the position of the shower controls, nearby sanitaryware and the amount of space available to stand comfortably outside the enclosure.

In a compact bathroom, the relationship between the enclosure and the other fittings can make a meaningful difference. A sliding door may avoid a conflict with a nearby basin or toilet that could occur with a hinged door, but the entrance must still be positioned conveniently.

For a family bathroom, consider whether the opening is suitable for the people who will use it. If accessibility is a priority, evaluate the clear opening and entry arrangement against the user's specific requirements instead of assuming that every sliding door provides equivalent access.

4. Choose the Right Enclosure Configuration

Sliding shower doors are available in different configurations to accommodate different bathroom layouts. The correct option depends on the shape of the showering area, the position of the walls and the intended entrance.

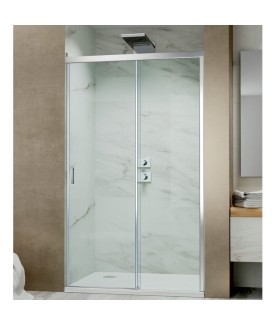

Wall-to-wall sliding enclosures

A wall-to-wall sliding shower enclosure is designed for an opening between two walls. The available width and the suitability of the wall surfaces are important factors when selecting this format.

Before purchase, confirm the actual finished opening and compare it with the enclosure's specified size and adjustment range. Also check where the fixed panels and sliding sections will sit in relation to the walls.

This type of arrangement can be considered for bathrooms where the showering area is positioned along a wall and the enclosure is intended to span the opening.

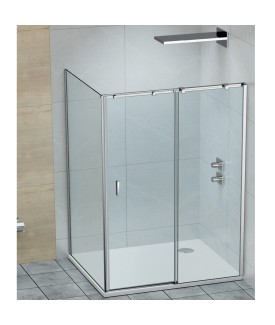

Corner and L-shaped configurations

A corner shower arrangement may be appropriate when the showering area occupies a corner of the bathroom. Some configurations use panels along two sides, with the door positioned to provide access.

The exact wall arrangement, dimensions and entrance position determine which enclosure is suitable. Jaquar UK lists L-shaped sliding enclosure options, including left and right versions in selected configurations.

Do not choose a left or right version based only on how the product image appears on screen. Confirm the orientation using the manufacturer's product drawings and installation instructions, taking into account the actual bathroom layout.

Choosing between configurations

The most suitable configuration is the one that fits the measured opening and provides practical access without conflicting with the surrounding fittings.

Review the available installation drawings before deciding. If the bathroom is being redesigned, establish the shower position early so the enclosure, tray, plumbing and wall finishes can be planned together.

5. Consider the Position of the Shower Controls and Head

The location of the shower head and controls can influence how convenient the completed enclosure is to use. These fittings should be planned in relation to the entrance, fixed panels and sliding door.

For example, consider whether the controls can be reached comfortably when entering the shower. Their position should also be assessed in relation to the door opening and the intended showering area.

The shower head needs to be positioned appropriately for the enclosure and the intended water coverage. The exact installation will depend on the selected shower system, the available water supply and the manufacturer's instructions.

Explore the wider shower collection when planning the enclosure and shower fittings together. This can help you consider the head, controls and other shower components as part of one coordinated specification.

If the shower system is being installed from scratch, confirm the locations of the water connections before the wall is tiled. This is particularly important where concealed components are used.

6. Plan the Enclosure Around the Rest of the Bathroom

A sliding shower door should work with the surrounding bathroom rather than being considered in isolation. Its position can affect access to the basin, toilet, storage and other fittings.

In a compact bathroom, map out the positions of the main fixtures before confirming the enclosure dimensions. Check that the entrance remains practical and that the sliding panels can travel without obstruction.

A bathroom with a countertop basin may have a different layout from one with a wall-hung basin. The depth of a vanity unit, the projection of the toilet and the position of towel storage can all influence the available circulation space.

Reviewing the basin collection can help when planning a coordinated bathroom layout, particularly if the basin and shower enclosure are being selected together.

Consider the following questions:

• Can the shower entrance be reached without squeezing past another fitting?

• Is there enough room to stand outside the enclosure when entering or leaving?

• Can the door be opened and closed without hitting a tap, towel rail or other obstruction?

• Is the shower control easy to reach from the entrance?

• Can the glass and track be cleaned without awkwardly reaching around nearby fixtures?

Thinking through these details before installation can help avoid a layout that looks balanced on a plan but feels inconvenient in daily use.

7. Understand Water Containment and Sealing

A shower enclosure helps define the showering area and limit water escaping into the wider bathroom. Its effectiveness depends on the enclosure design, correct installation, suitable sealing and the relationship between the door, tray or floor and adjacent walls.

Sliding doors commonly use overlapping panels and specified sealing components as part of their design. The arrangement varies by product, so check the individual installation documentation for the components supplied and the correct way to fit them.

Do not assume that a sliding door makes the enclosure completely watertight under every condition. Water containment depends on the complete installation and how the shower is used.

Before installation, check that the wall and tray or floor surfaces are prepared according to the instructions. The enclosure must be aligned correctly, and the specified sealing method must be followed.

Avoid improvising with extra sealant or altering the supplied components without reference to the manufacturer's instructions. An incorrect modification may affect the door's movement or the intended water-containment arrangement.

If water escapes after installation, identify where it is coming from before attempting repairs. The cause may relate to alignment, seals, the enclosure's installation or the surrounding showering area. Persistent leakage should be assessed by a qualified installer.

8. Check the Sliding Mechanism and Track Design

The sliding mechanism is central to the everyday operation of a sliding shower door. The panels need to travel along their intended path without obstruction, and the enclosure must be installed in accordance with the manufacturer's instructions.

When comparing products, review the supplied product details and installation information rather than assuming all sliding systems use identical rollers, tracks or adjustment methods.

The door should be aligned correctly during installation. If the enclosure is not level or the panels are incorrectly positioned, operation may be affected. Do not force a door that feels obstructed or unusually difficult to move.

The bottom track or guide area also deserves attention during routine cleaning because soap residue and mineral deposits can accumulate in areas exposed to water.

When choosing an enclosure, consider how accessible the track and sliding components will be for cleaning. The ability to reach the relevant areas can make routine maintenance more straightforward.

If a panel begins to move unevenly, makes an unusual noise or no longer closes as intended, consult the product guidance or an installer. Avoid dismantling the mechanism without understanding the correct procedure.

9. Choose Glass and Frame Details for the Intended Design

The glass and frame details influence how the enclosure relates to the rest of the bathroom. Jaquar's sliding door listings include options with Chrome, Gold and Black frames, alongside clear and selected black-glass designs.

Availability varies by configuration, so check the exact product listing before making a decision.

Clear glass

Clear glass can help preserve a visual connection between the shower and the rest of the bathroom. It may suit interiors where the tiles, shower fittings or wall finishes are intended to remain visible.

The overall effect depends on the glass, frame and surrounding materials, as well as the lighting within the room.

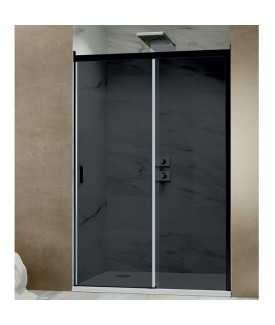

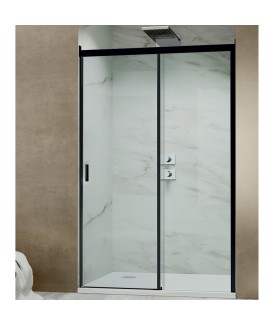

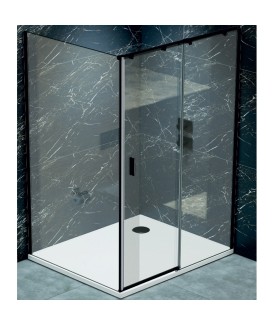

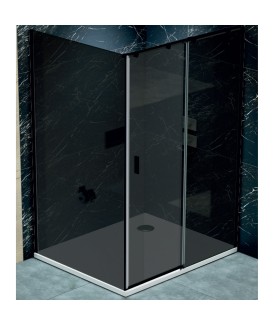

Black glass and contrasting frames

Selected enclosure options combine black frames with black glass, while other listed configurations use black frames with clear glass.

These combinations can create a more defined visual boundary around the showering area. Consider how the frame colour relates to the shower controls, taps and other visible fittings.

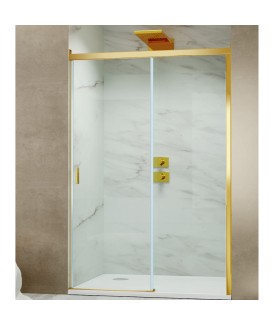

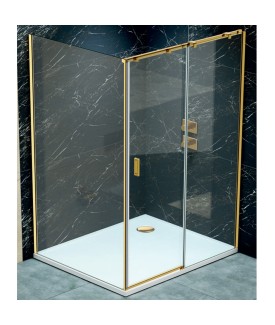

Coordinating frame finishes

The frame can be treated as part of the bathroom's wider finish scheme. A Chrome frame may complement other chrome fittings, while a Black frame can provide contrast against lighter tiles or coordinate with selected darker details.

Exact finish availability and appearance should be confirmed on the individual product page. Product images can look different depending on lighting and the surrounding materials.

10. Maintain the Glass, Frame and Tracks Correctly

Routine care can help keep a sliding shower enclosure looking presentable and operating as intended. The appropriate cleaning method depends on the product's materials and the manufacturer's guidance.

After showering, removing excess water from the glass using a suitable squeegee can help reduce visible water marks. Follow the manufacturer's instructions and avoid using tools that could scratch the glass or damage the frame.

Pay attention to the areas where glass, frame and track meet. These areas may collect soap residue, water deposits and other bathroom build-up over time.

A sensible maintenance routine includes:

• Cleaning the glass using a product and method approved for the enclosure.

• Wiping the frame with a suitable non-abrasive cloth.

• Removing residue from accessible track and guide areas.

• Checking the visible seals for signs of damage or displacement.

• Ensuring the sliding panels move normally without forcing them.

• Following the manufacturer's guidance for any maintenance of rollers or other moving components.

Avoid using harsh chemicals or abrasive pads unless the manufacturer explicitly recommends them. Different glass treatments and frame finishes may have different care requirements.

If a seal becomes damaged, a panel is loose or the sliding mechanism no longer operates correctly, consult the installation documentation or a qualified professional rather than relying on an improvised repair.

11. What to Check Before Ordering a Sliding Shower Door

Before placing an order, confirm that the chosen enclosure matches the bathroom's dimensions and installation requirements.

Opening dimensions: Measure the finished opening and compare it with the exact product specification.

Orientation: Confirm whether the enclosure is supplied in the correct left or right configuration where relevant.

Tray or floor compatibility: Check that the enclosure is intended for the selected shower tray or prepared floor arrangement.

Clear access width: Review the usable entrance dimensions rather than relying solely on the overall enclosure width.

Wall suitability: Confirm that the mounting surfaces and fixing arrangements meet the installation requirements.

Door travel: Ensure that the panels can slide without obstruction from taps, storage, towel rails or nearby fittings.

Sealing requirements: Follow the specified method for sealing and aligning the enclosure.

Finish and glass: Verify the exact frame finish and glass option listed for the selected model.

Installation support: Establish whether professional installation is appropriate for the project and confirm what preparation is required before the installer arrives.

These checks are especially important when replacing an existing enclosure with a different size or configuration. The previous enclosure's dimensions do not automatically establish that a new model will fit the same space.

12. Replacing an Existing Sliding Shower Door

When replacing an old sliding shower door, begin by assessing the existing enclosure and the condition of the surrounding installation.

Measure the opening again rather than assuming the original measurements remain accurate. Check the condition of the walls, tray or floor, and look for any signs of leakage or deterioration around the existing enclosure.

If the replacement has a different width, height, track arrangement or orientation, additional preparation may be needed. Confirm the new product's installation requirements before removing the old enclosure.

It is also worth checking whether the existing shower fittings will remain suitable for the new arrangement. The position of the shower head and controls should work with the proposed entrance and door movement.

If the tray or surrounding wall finishes are being replaced as part of the project, plan the enclosure at the same time. Coordinating the work can help ensure that the finished opening and mounting surfaces suit the selected model.

13. When Professional Installation Is Worth Considering

The installation requirements depend on the enclosure configuration and the condition of the bathroom. Some projects may be relatively straightforward, while others involve uneven walls, changes to the shower tray, new tiling or concealed plumbing.

Professional installation is particularly worth considering when the opening needs preparation, the walls are not square, the enclosure uses a more complex configuration or the existing installation shows signs of water damage.

A qualified installer can assess the substrate, verify the measurements, position the enclosure correctly and follow the product-specific fixing and sealing instructions.

Before work begins, confirm that the selected product is on site and that the installation instructions and required components are available. This can help identify missing parts or compatibility questions before the bathroom work progresses.

14. Frequently Asked Questions About Sliding Shower Doors

1. How do I measure for a sliding shower door?

Measure the finished shower opening at several heights and compare the measurements with the manufacturer's instructions. For a wall-to-wall enclosure, check the width at the top, middle and bottom, and confirm the available height. Also measure the shower tray or prepared floor area and check the product's stated adjustment range before ordering.

2. Are sliding shower doors suitable for small bathrooms?

They can be a practical choice because the door travels along a track rather than swinging into the room. However, suitability depends on the enclosure dimensions, clear entry width and the position of nearby fittings. Check the complete layout to ensure the entrance remains comfortable to use.

3. Can I install a sliding shower door on any shower tray?

No. The enclosure must be compatible with the dimensions, shape and installation arrangement of the tray. A level-access shower may also require a specific enclosure configuration. Always check the manufacturer's product and installation documentation before purchase.

4. How can I keep a sliding shower door running smoothly?

Keep accessible track and guide areas clean, remove soap residue and follow the manufacturer's maintenance instructions for the sliding mechanism. Do not force a panel that feels obstructed. If the door becomes difficult to move or appears misaligned, consult the product guidance or a qualified installer.

5. What should I do if water leaks from a sliding shower enclosure?

Check where the water is escaping and consult the installation instructions for the correct sealing and alignment requirements. Leakage can relate to the enclosure, seals, installation or surrounding showering area. Avoid making unapproved alterations to the seals or track. If the cause is unclear or leakage persists, seek help from a qualified installer.
